In-Line Centrifugal Pumps, Mounted on Straight Pipe (NLL-H)

Suction Flange
:
DN 40 .. DN 250
Discharge Flange
:
DN 40 .. DN 250
Q (Flow)
:
800 m3/h (max)
H (Head)
:
95 m (max.)
Motor (Rotation Per Minute)
:
1450 d/dk. - 2900 d/dk.
Direction of Rotation (Motor)
:
Clockwise (Right)
t (Operating Temperature) (1)
:
-10 °C (min.) / +140 °C (max.)
Pd (Body Pressure Pmax) (2)
:
10 - 16 bar
(1) » The pump material varies depending on the type of fluid, operating temperature and pressure.
For more information, please refer to our company.
(2) » (Pmax: Suction Pressure + Pump Head in Closed Valve)

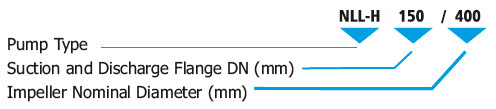

NLL-H Series Pumps

Clean or very slightly polluted, low viscosity liquids without solid particles and fibers are suitable for pumping.

Technical Specifications

- NLL-H Series Pumps are centrifugal pumps that have vertical shaft, single stage, volute, closed impellers and connected to straight pipe and having their own bearings group.
- Suction and discharge flanges conform to EN 1092-2 / PN 16.
- NLL-H pumps are used by electric motors in accordance with VDI standards and IEC construction size norms
- Thanks to the removable rear design of NLL-H pumps motor, motor carriers, seal bearing, impeller can be dismantled without separating the volute off the piping.
- The direction of rotation is clockwise when viewed from above.

Pump Description

Drawing



1 Volute Body
2 Housing cover
3 Lower Deck
4 Motor Carrier
5 Wear Ring
6 Bearing Races
7 Bearing Cap (External)
8 Bearing Cap (Internal)
9 Impeller
10 Pump Shaft
11 Impeller Nut
12 Spacer Bushing
13 Rigid Coupling (Pump)
14 Rigid Coupling (Motor)
15 Coupling Rubber
16 Water Splash Disk
17 Ball Bearing
18 Coupling Key
19 Stud (Motor Carrier Bolt
20 (Bearing Cap) Bolt
21 (Electric Motor) Allene
22 Bolts (Lower Deck)
23 Nuts (Motor Carrier)
24 Mechanical Seal
25 O-Ring
26 Impeller Key
27 Electric Motor
