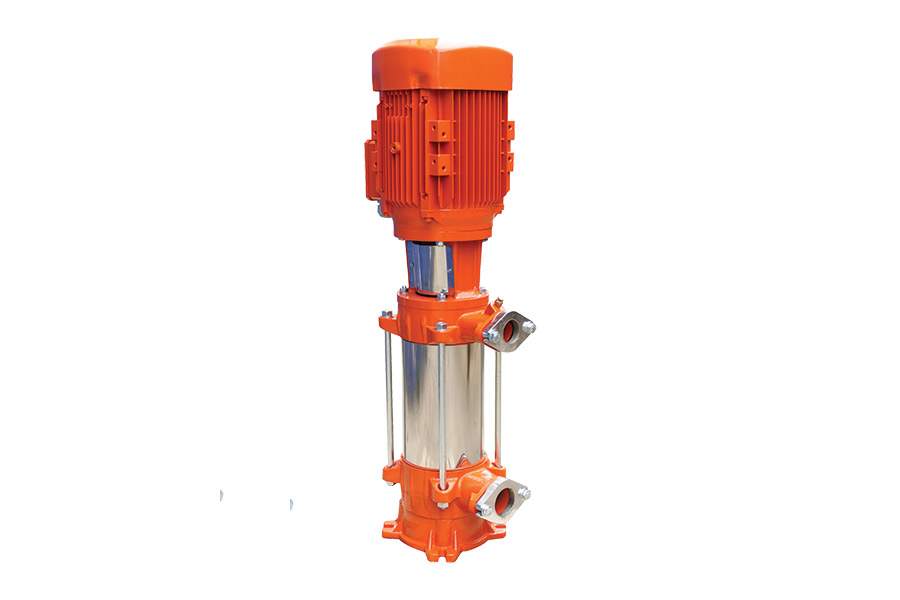

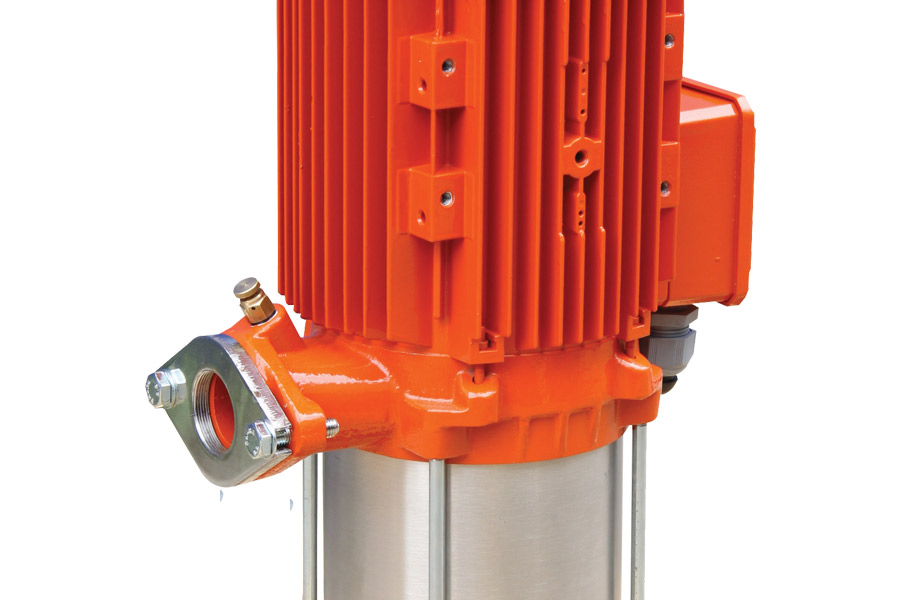

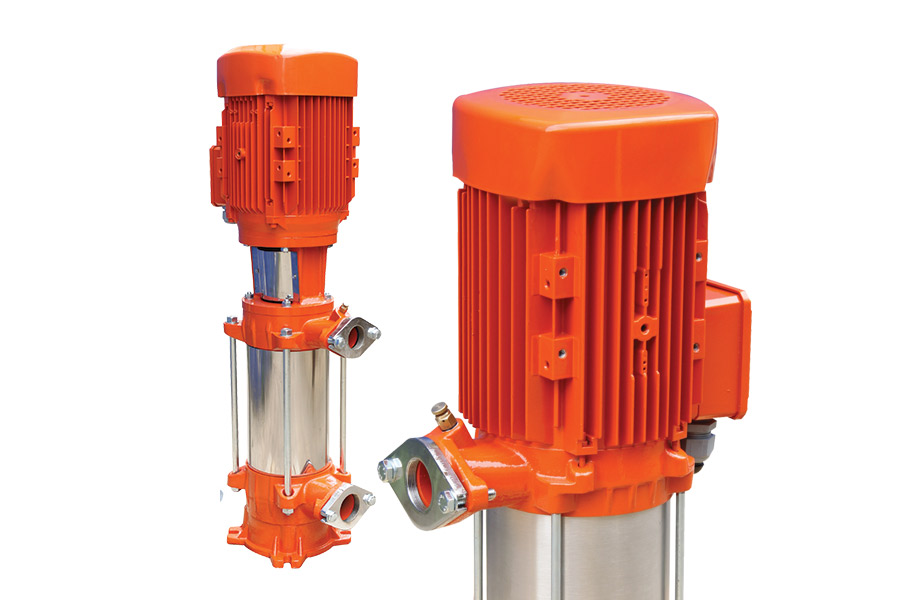

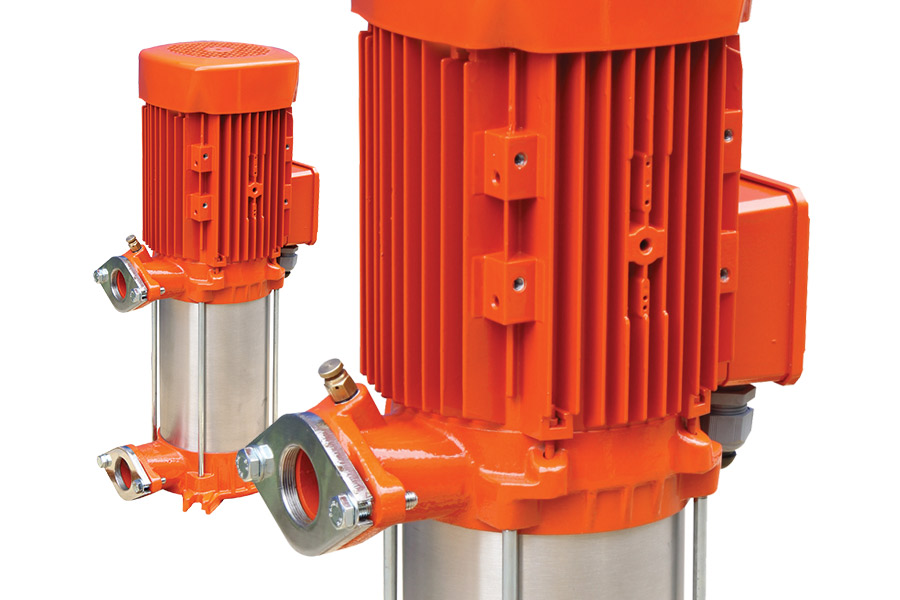

Vertical Shaft, Multistage Centrifugal Pumps

Ürün Kodu: NB1000

It is designed to pump water and other harmless, non-explosive, not containing any solid particles and fibers, fluids. These pumps are are stainless steel jacketed high pressure, quiet, compact and low power consumption.

Q (Flow)

70 m³/h (max)

H (Head)

160 m (max.)

t (Operating Temperature)

60 °C (max.)

Pd (Body Pressure Pmax)

10-25 (max.) bar

Teklif İste

NB1000 Product Catalog

none:SNB1000_Pompa-En.pdf

Technical Specifications

The direction of rotation is clockwise when viewed from above. In Standard production suction and discharge directions are in the same direction. Pump shaft: It has been supported between the motor bearings in the upper part and special journal bearings in lower part. The bottom bearing is cooled with water; the pump and the motor shaft are connected with rigid coupling. Motor: Air-cooled 2-pole, (Single Phase 1 ~, 220V, 50 Hz, three phase 3 ~ 380 V, 50 Hz) in accordance with IEC standards

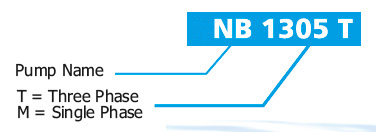

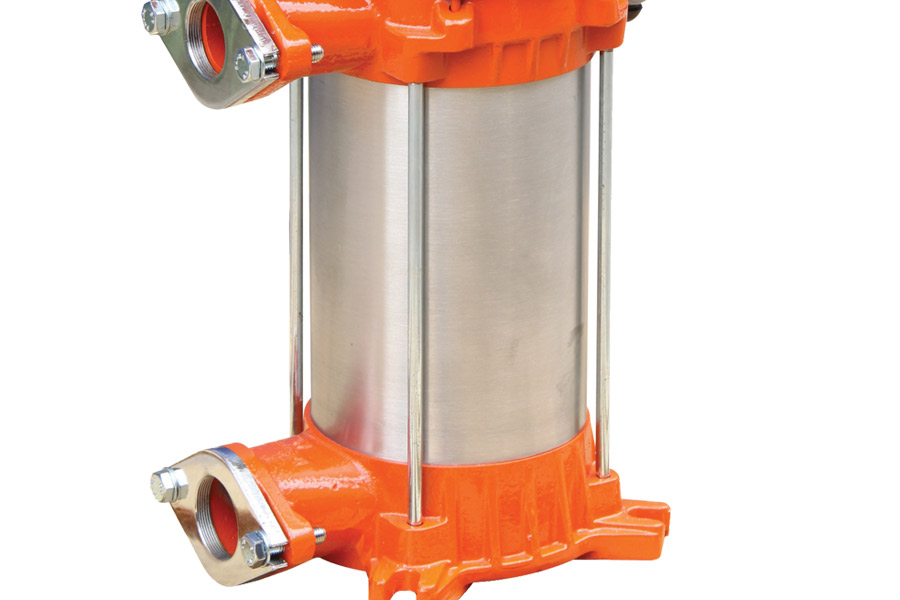

Pump Description

Material Data

Part Name	Material
Part Name	GG 25	AISI 420 [X 20 CR 13]	AISI 304	NORYL	BRONZ
Compression Body	✔
Suction Body	✔
Shaft		✔
Protection Panel			✔
Diffuser Body				✔
Impeller				✔
Motor Carrier	✔
Lower Bearing					✔
Foot	✔

Motor Options According to The Number of Stages

Pump Type	Number of Stages
Pump Type	3	4	5	6	7	8	9	10	11	12
NB 1100		—	—	—	—	—	—	—	—	—
NB 1200	—	—	—	—	✔	✔	✔
NB 1300	✔	✔	✔	✔	✔
NB 1400	✔	✔	✔	✔	✔
NB 1400 C	✔	✔	✔	✔	✔	✔	✔
NB 1500	✔	✔	✔	✔	✔	✔
NB 1500 C	✔	✔	✔	✔	✔	✔
NB 1600	✔	✔	✔	✔	✔	✔
NB 1700	✔	✔	✔	✔

— Single Phase 1~ / Three Phase 3~

✔ Three Phase 3~

Single Phase

Single Phase 1 ~ (2 Pole, 220 V, 50 Hz)

Pump Type	Motor Power (Kw)					Product Code No
Pump Type	0,55	0,75	1,1	1,5	2,2	Product Code No
1104 M	✔					02 0001 00
1105 M		✔				02 0002 00
1106 M		✔				02 0003 00
1107 M			✔			02 0004 00
1108 M			✔			02 0005 00
1109 M			✔			02 0006 00
1203 M			✔			02 0009 00
1204 M				✔		02 0010 00
1205 M					✔	02 0011 00
1206 M					✔	02 0012 00

Three Phase

Three Phase 3~ (2 Pole, 380 V, 50 Hz)

Pump Type	Motor Power (Kw)
Pump Type	0.75	1.1	1.5	2.2	3	4	5.5	7.5	11	15	18.5
1104 T	✔
1105 T	✔
1106 T	✔
1107 T		✔
1108 T		✔
1109 T		✔
1110 T			✔
1111 T			✔
1112 T			✔
1203 T			✔
1204 T			✔
1205 T				✔
1206 T				✔
1207 T					✔
1208 T					✔
1209 T					✔
1303 T					✔
1304 T					✔
1305 T						✔
1306 T							✔
1307 T							✔
1403 T					✔
1404 T						✔
1405 T							✔
1406 T							✔
1407 T							✔
1403 C T					✔
1404 C T						✔
1405 C T							✔
1406 C T							✔
1407 C T								✔
1408 C T								✔
1409 C T									✔
1503 T					✔
1504 T						✔
1505 T							✔
1506 T								✔
1507 T								✔
1508 T									✔
1503 C T						✔
1504 C T							✔
1505 C T								✔
1506 C T								✔
1507 C T									✔
1508 C T									✔
1603 T							✔
1604 T								✔
1605 T									✔
1606 T									✔
1607 T										✔
1608 T										✔
1703 T									✔
1704 T										✔
1705 T										✔
1706 T											✔

Q (Flow)	70 m³/h (max)
H (Head)	160 m (max.)
t (Operating Temperature)	60 °C (max.) — The pump material varies depending on the type of fluid, operating temperature and pressure. For more information, please refer to our company.
Pd (Body Pressure Pmax)	10-25 (max.) bar — (Pmax: Suction Pressure + Pump Head in Closed Valve)
