Package Booster Sets

NBH Series Booster Sets

It is designed to pressurize water and other harmless (non-explosive, not containing any solid particles and fibers) fluids. NBH series pressure boosters are manufactured with 1,2 and 3 pumps. It can optionally be manufactured with more pumps. In NBH series booster systems; ELECTRONIC CONTROL AND PROTECTION (ECP) unit is used. ECP panels are produced with sequence selector or optionally with a frequency inverter.

General Pressure Water Supply

Houses, block of apartments, schools, business centers, shopping malls, industrials plants, factories

Pump Material Data

Part Name	Material
	GG 25	AISI 420 [X 20 CR 13]	AISI 304	NDRYL	BRONZ
Boosting Body	✔
Suction Body	✔
Shaft		✔
Protection Panel			✔
Diffuser Body				✔
Impeller				✔
Motor Carrier	✔
Lower Bed					✔
Foot	✔

Technical Specifications

- The direction of rotation is clockwise when viewed from above. In standard production suction and head directions are in the same direction.
Pump shaft: Motor bearings in the upper part and a special welding bearing system in the lower part have formed a bearing. The bottom bearing is cooled with water; the pump and the motor shaft are connected with rigid coupling.

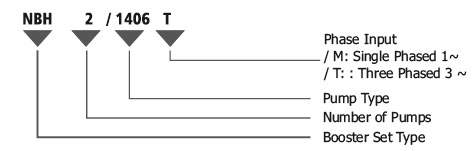

Booster Set Type

There is no single-phase input 1 ~ in booster set groups of NBH 1300/1400/1500/1600/1700 series.
NOTE: When ordering, please specify the type of the booster set.
