Pumps

Monoblock Centrifugal Pumps

Ürün Kodu: NSM

Suction Flange

DN 50 .. DN 200

Discharge Flange

DN 32 .. DN 150 mm

Q (Flow)

500 m³/h (max)

H (Head)

95 m (max.)

Motor (Rotation Per Minute)

1450 d/dk. - 2900 d/dk.

Direction of Rotation (Motor)

Clockwise (Right)

t (Operating Temperature)

-10 °C (min.) / +140 °C (max.)

Pd (Body Pressure Pmax)

10 - 16 bar

Teklif İste

NSM Product Catalog

none:SNSM_Pompa_2014-En.pdf

NSM Series Pumps

It is intended for pumping clean or very slightly polluted, low viscosity liquids without solid particles fibers and abrassives.

Technical Specifications

- Centrifugal pumps with a volute, single-staged end-suction closed impeller mono-block.
- Body sizes conform to EN 733 / DIN 24255 standards
- Suction and discharge flanges conform to EN 1092-2 PN 16 or PN 16.
- Pump shaft is supported between bearings by motor bearings.
- Shaft sealing is provided by mechanical seal.
- NSM pumps are used by electric motors in accordance with VDI standards and IEC construction size norms.
- NSM pumps have 38 models from DN 32 up to DN 200.

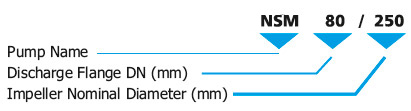

Pump Description

Suction Flange	DN 50 .. DN 200
Discharge Flange	DN 32 .. DN 150 mm
Q (Flow)	500 m³/h (max)
H (Head)	95 m (max.)
Motor (Rotation Per Minute)	1450 d/dk. - 2900 d/dk.
Direction of Rotation (Motor)	Clockwise (Right)
t (Operating Temperature)	-10 °C (min.) / +140 °C (max.) — The pump material varies depending on the type of fluid, operating temperature and pressure.<br/>For more information, please refer to our company.
Pd (Body Pressure Pmax)	10 - 16 bar — (Pmax: Suction Pressure + Pump Head in Closed Valve)
