Hot Oil Pumps

NKY Series Pumps;

It is suitable for pumping heat transfer oils and low viscosity industrial oils without containing any abrasive parts in.

Technical Specifications

- Horizontal shaft,volute, single-stage, end-suction, air-cooled, closed impeller centrifugal pumps. - Suction and discharge flanges conform to EN 1092-2 / PN 16. - All of the impellers have been dynamically balanced according to ISO 1940 class 6.3. - Bearing group, seal bearing, pump shaft and the impeller can be dismantled without separating the volute off the piping installation thanks to the design that can be dismantled from the back.

Sealing of Shaft

- High temperature resistant single-acting type and mechanical seal is used.

Direction of Rotation

- The direction of rotation of pump is clockwise when viewed from the motor side.

Pump Description

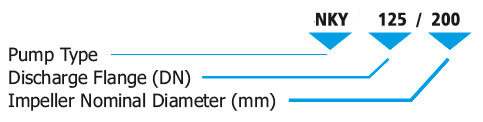

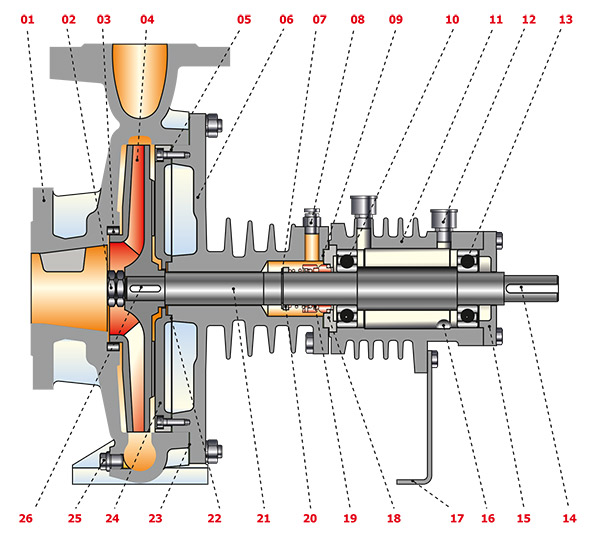

Section Drawing

1 Volute Body 2 Impeller Nut 3 Wear Ring 4 Impeller 5 Seal (Wear Plates) 6 Housing Cover 7 Retainer 8 Air Bleed Plug 9 Gasket Mechanical Seal Cover 10 Ball Bearing 11 Bearing Races 12 Grease Nipple 13 Ball Bearing

14 Coupling Key 15 Bearing Cap 16 Grease Drain Plug 17 Support Foot 18 Mechanical Seal Cover 19 Mechanical Seal 20 Spacer (Mechanical Seal) 21 Shaft 22 Seal (Wear Plates) 23 Gasket (Body) 24 Wear Plate 25 Drain Plug 26 Impeller Key
